Product Details

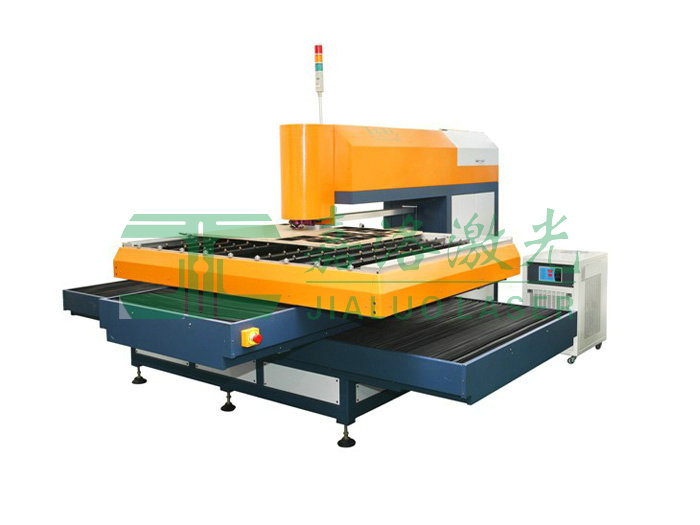

JLL400 -F laser cutting machine

Laser type

 co2 laser tube

Working area

1800*1200MM

Light path

Fixed optical path (laser head fixed , plate move)

Drive style

Double direction import precision ball screw transmission

Applicable process material

Acrylics plastic products  6-9- 15- 18- 22 mm, PVC plastic board, acrylic, etc. Nonmetal materials

 Laser power

Maximum output power 400 w

Cutting speed

0-3000 - mm/min software Settings (18 mm board: 450 mm/min)

Control panel

   LCD;  EN&Chinese operation menu

Transmission port

USB connection; off-line operation,equip high stored; DXF/PLT

Instruction system

International standard: compatible with the CDR, CAD and other software

Control software

Jialuo laser Cutting&Engrave control system(EN&Chinese version)

Cooling water degrees

5℃-30℃

Surrounding degrees

5 ℃ to 35 ℃

Cooling water

pure water

Protection  gas

Non-oil airwith drying

Cutting precision

±0.05mm

Rep-site precision

±0.02mm

Relative humidity

≤80%

 size

3000 mm * 3000 mm (stretch)

Power supply

Single 220 v ± 5%  50 HZ   10 A

 weight

1.5 Tons

Work space

5000mm*5000mm

Work area(Stretch)

2500*3000MM


1,Fixed light road(laser head fixed,the cutting materials move)

2,Double directions transmission by the imported accurate ball screw shafts(more accurate),the dieboard's tolerance is ±0.05mm.

3,One time can cut 18--22mm,the laser beam will be vertical and even; cutting one meter cost about  2 minutes,cutting one die-board of 8 normal boxes only need half an hour

4, Save power and cost less,single phase 220 voltage,use power about 3KW/H(400W power);700W power machine use power about 10 KM.H

5, Can't out of shape and twist out of shape for long time wording;

6,No need subsidiary air for working (300W power type) 700W power type uses the air about RMB2000/Y

7, When you start the machine ,you can use the machine at once,no need wait;

8,Easy focus and operation,you can operate it soon after simple training
