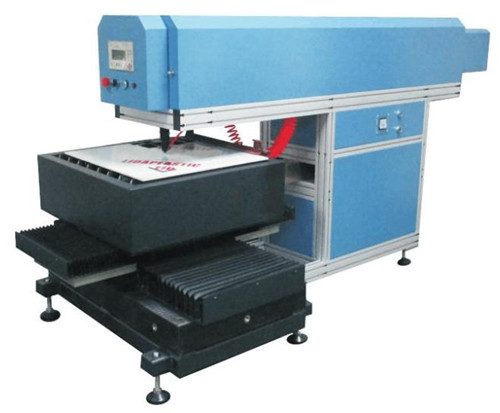

产品名称：JLSD8060-100W-F小功率激光刀模切割机（PVC专用）
所属类别：激光刀模切割机
产品品牌：嘉洛激光
产品型号：JLSD8060-100W-F
浏览次数：912 次
适用范围：专业用于PVC胶板、12mm以下(包括12mm)木板、亚克力板、纸板割样、皮革布料开料等非金属材料的切割
l 小功率激光刀模切割机（PVC专用）
l SMALL POWER LASER DIEBOARD CUTTING MACHINE(FOR PVC DIE)
型号：JLSD8060-100W-F
MODEL: JLSD8060-100W-F
特点：Features:
●大理石底座平台加铸造机身，永不变形；
Marble base platform plus casting body, never deformation;
●进口双螺母滚珠丝杆传动；
Imported precision ball bearing lead screw;
●一次折射，调光非常简易；
One time refraction, dimming is very simple;
●误差保证0.02mm以内；
Tolerance less than 0.02mm
●脱机控制单元，控制盒带LED液晶显示操作面板，可以直接在液晶显示屏上修改机械与切割参数，64M的图形数据贮存空间充分满足大文件的需要；
Offline control unit, the control box with LED LCD display control panel, you can directly modify the machine on the LCD screen and cutting parameters, 64M graphics data storage space to fully meet the needs of large files
●专业的刀模控制软件及人性化的刀模图形处理系统；
Professional die control software and user-friendly die graphics processing system
●激光头固定，烟雾排放集中，排烟效果佳，腐蚀最小；
Laser head fixed, smoke emission concentration, smoke effect is good, corrosion minimum;
●电气控制部分独立安装，不受烟雾腐蚀；
Electrical control part of the independent installation, free from smoke corrosion;
适用范围：Scope of application:
专业用于PVC胶板、12mm以下(包括12mm)木板、亚克力板、纸板割样、皮革布料开料等非金属材料的切割
Professional for the PVC sheet, 12mm (including 12mm) wood, acrylic board, cardboard cutting, leather materials, such as cutting the opening of non-metallic materials
机器参数machine parameter:
机器型号 Machine model | JLSD8060-100W-F |
激光功率 Laser power | 100W |
激光器种类 Laser source type | 国产CO2激光器 CO2 Laser tube |
激光波长： Laser wavelength | 10.6um |
工作行程 Working area | 800mm*600mm |
传动方式 Transmission | X Y双方向进口双螺母滚珠丝杆传动 Motive transmission by precision ball bearing lead screw for two direction. |
切割精度 Cutting Precision | 0.02mm |
定位精度 Positioning precision | ＜0.0１mm |
光路形式 Light path | 固定光路 Fixed light path |
板材固定方式 Material fixed way | 栅条支撑加气动夹板 Grid support plus pneumatic splint |
切割材料厚度 Cutting thickness | 最大35mm Max 35mm |
切割速度 Cutting speed | 最快5m/每分钟 Max 5m/min |
冷却水水温 Cooling water degree | 5℃~30℃ |
冷却水 Cooling water | 无杂质纯净水 Pure water |
配合气体 Protection gas | 干燥无油压缩空气 Non-oiled air with drying |
相对湿度 Relatively humidity | ≤80％ |
电力需求 Supply power | 220V±5％ 50Hz 10A |
数控面板 Operation control | LED显示屏，中英文操作菜单，轻触按键 LED, English and Chinese operation menu |
传输端口 Transmission port | 脱机控制单元+USB连接、设备可以单独摆放 Off-line control unit + USB connection, the device can be placed separately |
指令系统 Instruction system | 国际标准：支持DXF、PLT、AI等多种文件格式，支持CAD直接输出文件切割 International standard: support DXF, PLT, AI and other file formats, support for CAD direct output file cutting |
操控软件 Control software | 嘉洛激光精密激光切割系统（中英文版） Jialuo laser cutting control system(EN & Chinese version) |
外型尺寸 Machine size | 长*宽*高= 2500*1160*1360mm L*W*H= 2500*1160*1360mm |
注：此激光机仅用于激光刀模制作，其他特殊用途须经机器供应商同意。
Note：This laser cutting machine just can use for die making, if customer want to use for another using, it must confirm with supplier.
