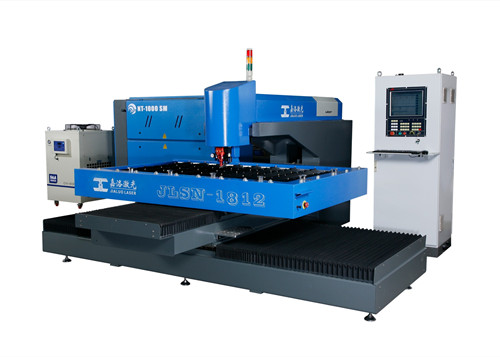

l 激光刀模切割机

l LASER DIEBOARD CUTTING MACHINE

型号：JLSN1812-G1900-F

MODEL: JLSN1812-G1900-F

性能Functions:

1、固定光路（激光头固定不动，板材运动），激光光程固定，保证切缝恒定。

Fixed laser light road (Laser head is fixed, cutting materials move); laser path is fixed, guarantee the cutting gap is same.

2、进口研磨级丝杆传动，精度和寿命远超普通转造级丝杆。

Imported high precision grounded ballscrew, precision and used life is higher than rolled ballscrew.

3、高品质直线导轨2年免维护，简化维护工作量。

High quality linear guideway need not maintenance for 2 years; predigest work time of maintenance

4、高强度稳定机床，十字滑台结构，重约1.7吨，长年工作不变形不弯曲。

High strength and stabilization machine body, cross slipway structure, weight about 1.7T.

5、电子随动激光头切割系统，自动适应材料弯曲及厚薄的高低不平，保证切缝一致。

   Electronic floating laser head cutting system, Automatic suitable for bend, different thickness and height materials, guarantee cutting gap all same.

6、独立防尘机柜，密封等级IP54，保证机床控制系统稳定运行。

Autocephaly dustproof machine control system, airproof grade: IP54, guarantee machine control system working stabilization.

7、德国进口数控系统，集成激光切割专用能量控制功能，机床操作功能，激光器操作功能，专家切割工艺库等，高速高精度及高稳定性，实现完美切缝。

German digital control system, included laser cutting power control, machine body operation, laser system operation and expert cutting technology function etc; high speed, high precision and high stabilization, realize perfect laser cutting gap.

8、激光切割头采用抽屉式聚焦镜座，更换、清洁镜片非常方便。

Laser head adopt drawer style for lens; it is very convenient for replacing and cleaning.

参数Parameters:

激光器种类和功率：1900瓦沃福激光发生器

Laser type: 1900W wolf laser system.

工作行程:    1800*1200毫米

Working area: 1800*1200MM

光路形式：   固定光路（激光切割头固定，板材运动）

Laser line path: Fixed laser line path (the laser head fixed, the machine body moved)

传动方式：   进口研磨级丝杆

Drive style:     Imported high precision grounded ballscrew

切割材料及厚度：木板6-9-15-18-22mm、PVC胶板、亚克力和8mm以内碳钢

Cutting material and thickness: 6-9-15-18-22mm plywood, PVC board, acrylics and less than 8mm carbon steel materials

环境温度：    5度-35度

Environment temperature: 5℃-35℃

冷却水温度：  5度-30度

Cooling water temperature: 5℃-30℃

冷却水:       无杂质纯净水

Cooling water: Pure water

保护气体：   干燥无油压缩空气

Protection gas:  non-oil and dry air.

相对湿度：    ≤80%

Relatively humidity: ≤80%

供电电源：   三相380V±5％、50/60HZ、50KVA

Supply power: Three phase 380V±5% 50/60HZ、50KVA

切割速度：   0-16000mm/min软件设定（18mm木板；2200mm/min）

Cutting speed: 0-16000mm/min (software setting, 18mm plywood: 2200mm/min)

定位精度：   0.025mm/1250

Cutting tolerance: 0.025mm/1250

重复精度：   ≤0.01mm

Repeat tolerance: ≤0.01mm

数控面板：  15寸LCD,激光切割数控专用面板

Operation control panel: 15’ LCD, professional control panel of laser cutting system.

传输端口：   RS232网线接口/USB连接

Transmission port: RS232 Net line transmission/USD connection

控制系统：   德国进口PA8000数控系统/国内激光切割专业系统.

Control software: German PA8000 digital laser control system/Chinese professional digital laser control system.
